This page explains the File Governance screen in JOSYS.Please refer to the knowledge base article below for operation instructions.
Overview
This page explains the File Governance screen in JOSYS.Please refer to the knowledge base article below for operation instructions. Reference: File Governance Overview
Target Audience
IT Administrators with Super Admin privileges.
Screen Description
The following sections describe the File Governance List screen and the Details screen displayed when clicking on a file/folder within the list.

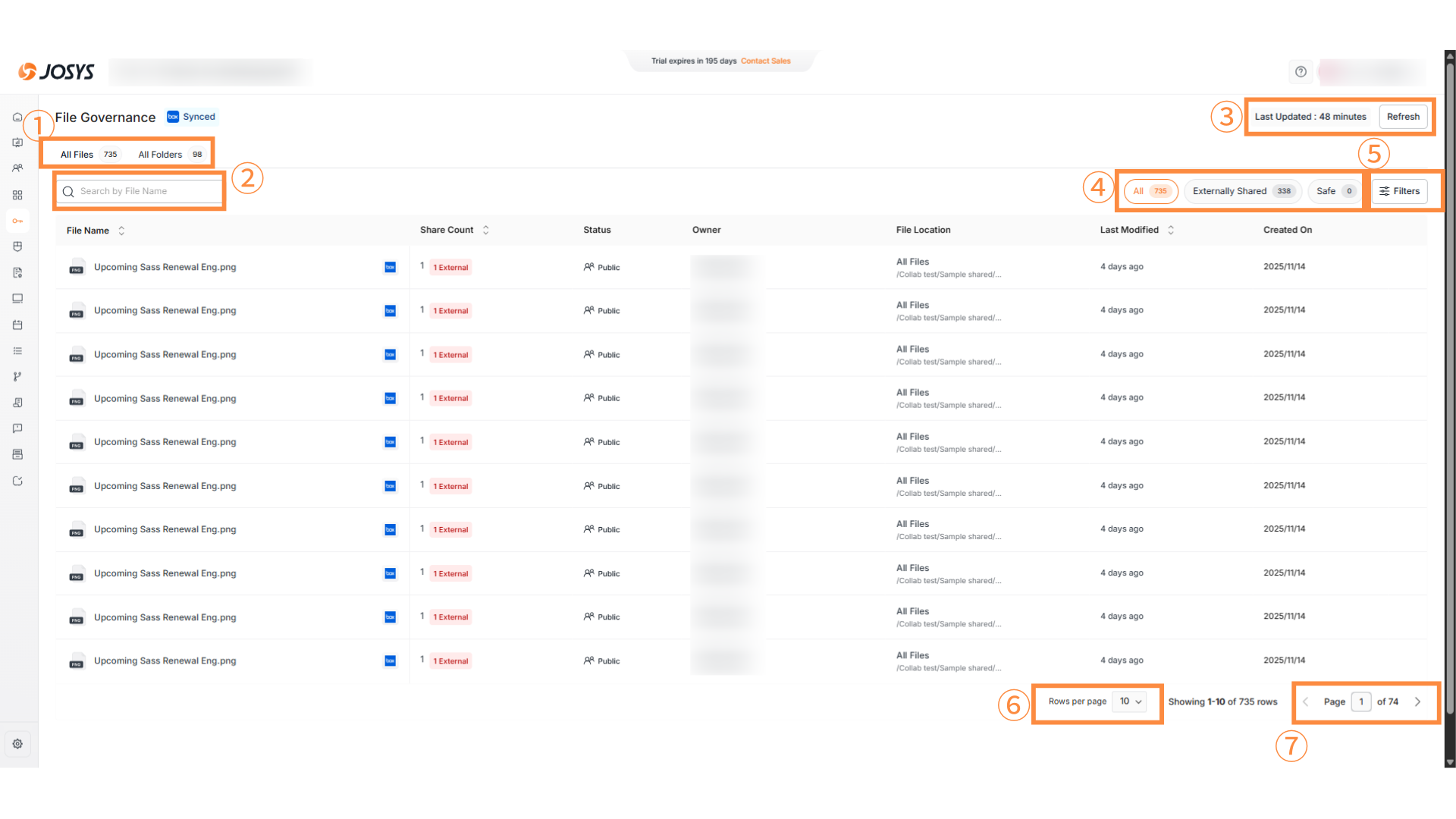

List Screen
Features
The following describes the screen components according to the numbers in the screenshot.
| NO | Item | Description |
|---|---|---|
| ① | Tabs | Select between "All Files" or "All Folders". Click "All Folders" if you wish to view a list of folders within Box. |
| ② | Search box (Top Left) | Allows for a partial search of the list by file/folder name. |
| ③ | "Refresh" button (Top Right) | Click this button to reflect the files/folders currently in Box onto JOSYS. |
| ④ | Preset Filter Buttons |
Switch the view to show "All", "Externally Shared", or "Safe" files/folders. "All": Displays all files/folders. "External Shared Files": Displays files/folders that grant viewing/editing permissions to external users and have NOT been marked as "Safe" in JOSYS. "Safe": Displays the list of files marked as "Safe". |
| ⑤ | "Filters" button | Allows you to filter the displayed list. You can filter by File Type, Owner, and Status. |
| ⑥ | "Rows per page" (Bottom Right) | Changes the number of items displayed on the list page. Select from 10, 25, 50, or 100 items (maximum 100). |
| ⑦ | Pagination (Bottom Right) | Navigate to the next or previous page. |
Description of each column
Description of each column in the list screen.
| Column Name | Description |
|---|---|
| File Name or Folder Name | The name of the file or folder. |
| Share Count | Displays the number of people this file/folder is shared with. If there are external users, the count of external users is also displayed. |
| Status | Displays whether the file/folder is Public or Private. |
| Owner | Displays the owner of the file/folder. |
| File Location | Displays the folder path where this file/folder is stored. |
| Last Modified | Displays the date when the file/folder was last updated. |
| Created On | Displays the date when the file/folder was created. |

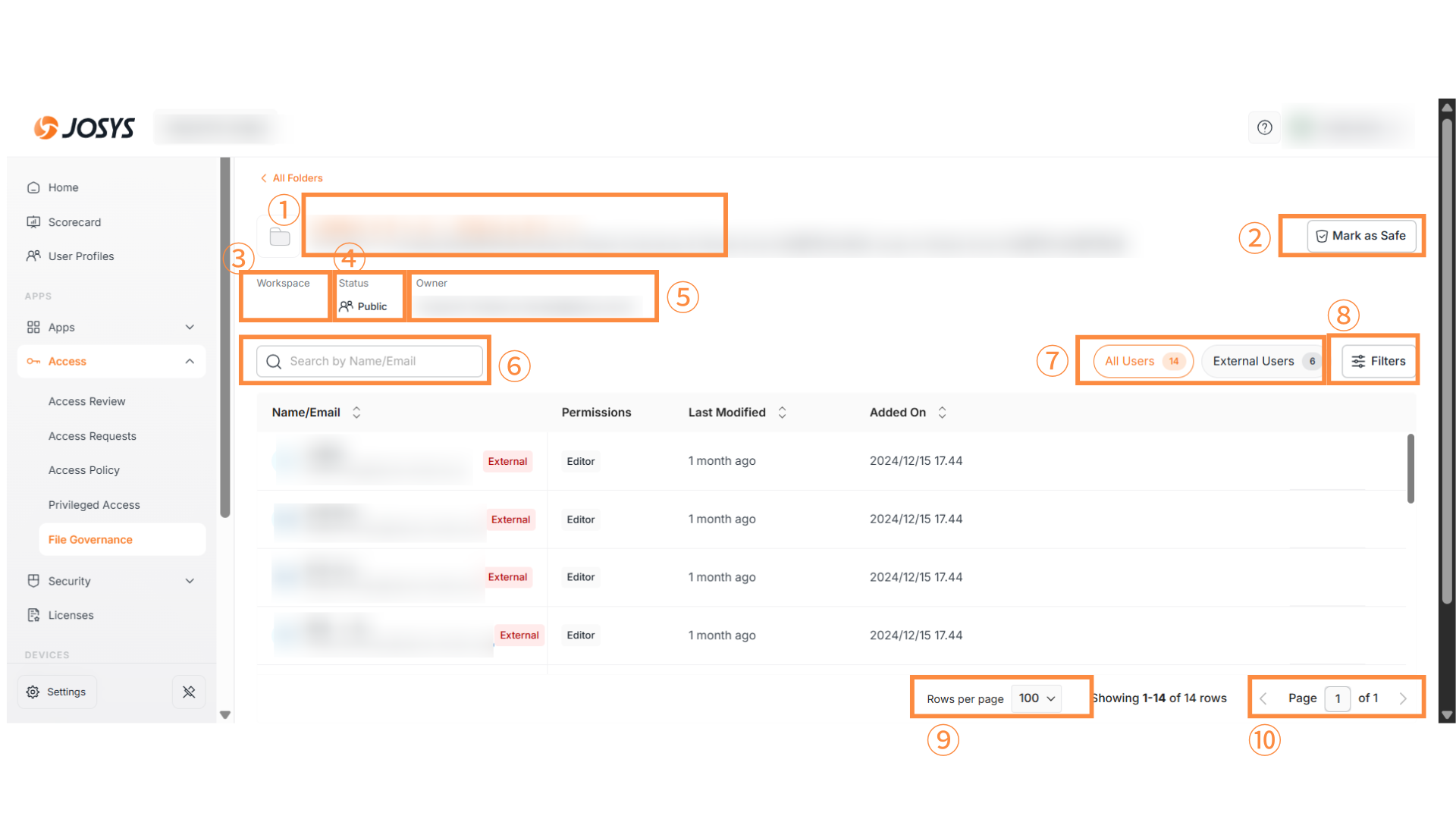

Details Screen
Features
The following describes the screen components according to the numbers in the capture.
| NO | Item | Description |
|---|---|---|
| ① | File/Folder Name & Path | Displays the file/folder name and its storage folder path. |
| ② | "Mark as Safe" button (Top Right) | Allows you to flag this file as "Safe" regarding its external sharing settings or if there are no user permissions. |
| ③ | "Workspace" (Top Left) | Displays the "Integration name" configured when integrating Box with JOSYS. |
| ④ | "Status" field | Checks the publication status of the file/folder. Displays either Public or Private. |
| ⑤ | "Owner" field | Displays the owner of the file/folder. |
| ⑥ | Search box (Top Left) | Allows for a partial search of the list by file/folder name. |
| ⑦ | Preset Filter Buttons |
Switch the view to show "All Users" or "External Users". "All Users": Displays a list of all users who have permissions for the file/folder. "External Users": Displays a list of external users who have permissions for the file/folder. |
| ⑧ | "Filters" button | Allows you to filter the displayed list. You can filter by Permissions (Owner, Editor, Viewer, etc.). |
| ⑨ | "Rows per page" (Bottom Right) | Changes the number of items displayed on the list page. Select from 10, 25, 50, or 100 items (maximum 100). |
| ⑩ | Pagination (Bottom Right) | Navigate to the next or previous page. If the number of members exceeds the display limit, please check the members not displayed here. |
Description of each column
Description of each item on the list screen.
| Column Name | Description |
|---|---|
| Name/Email | Displays the name and email address of the user who has permission to access this file/folder. |
| Permissions | Displays the type of permission granted for this file/folder. |
| Last Updated | Displays the date when the user's permissions were last updated. |
| Date Added | Displays the date when the user was granted permission to access this file/folder. |
