Lark Integration

Integrating Lark with Josys enables the IT Admin to view the user accounts.

Key benefits

When you integrate Josys with Lark, you can view a list of user accounts, including their status, roles, department, and designation.

Note: Josys supports multiple Lark integrations.

Prerequisites

Before you begin with the integration, make sure that you have:

• A Lark admin account
• A Starter, Pro, or Enterprise plan
• The Client ID and Client Secret details

Get the Client ID and Client Secret

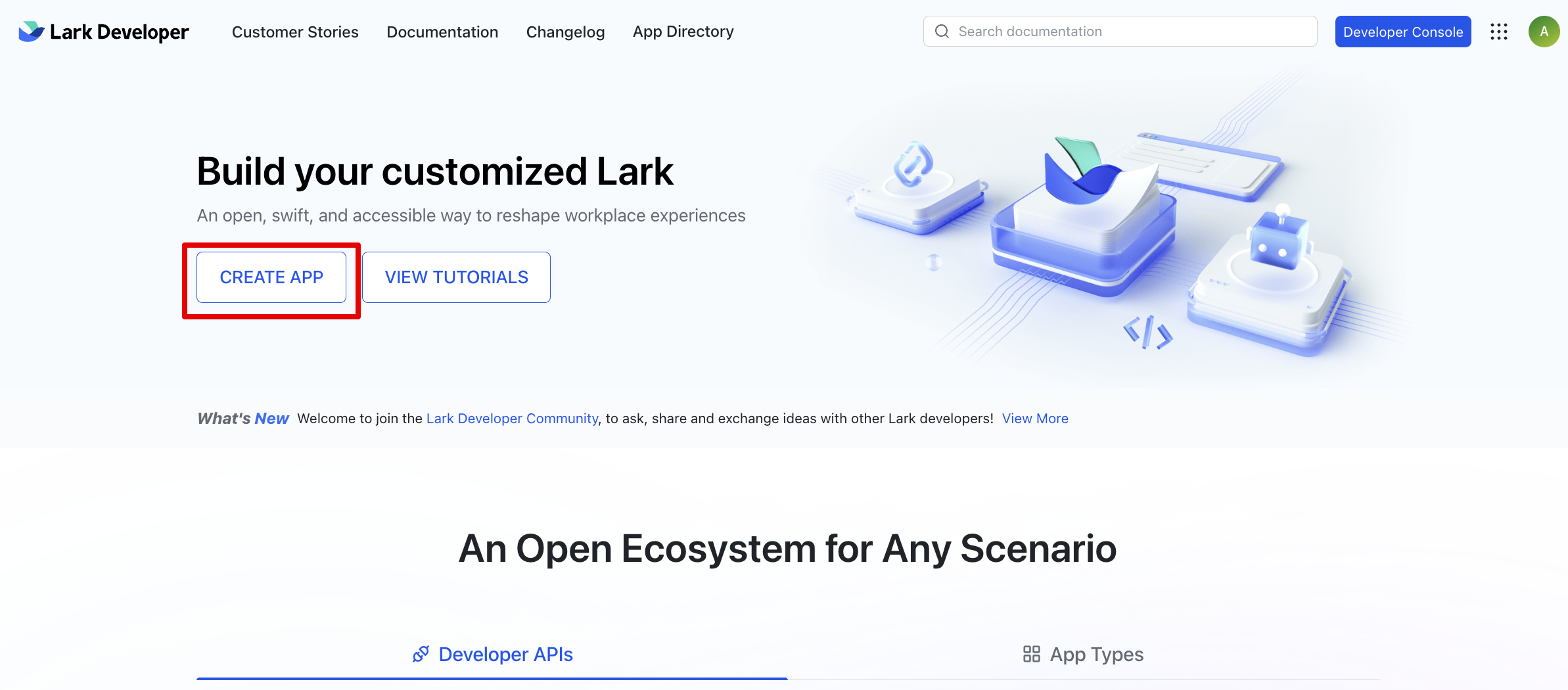

Step 1: Log in to Lark using an admin account. Click Create App.

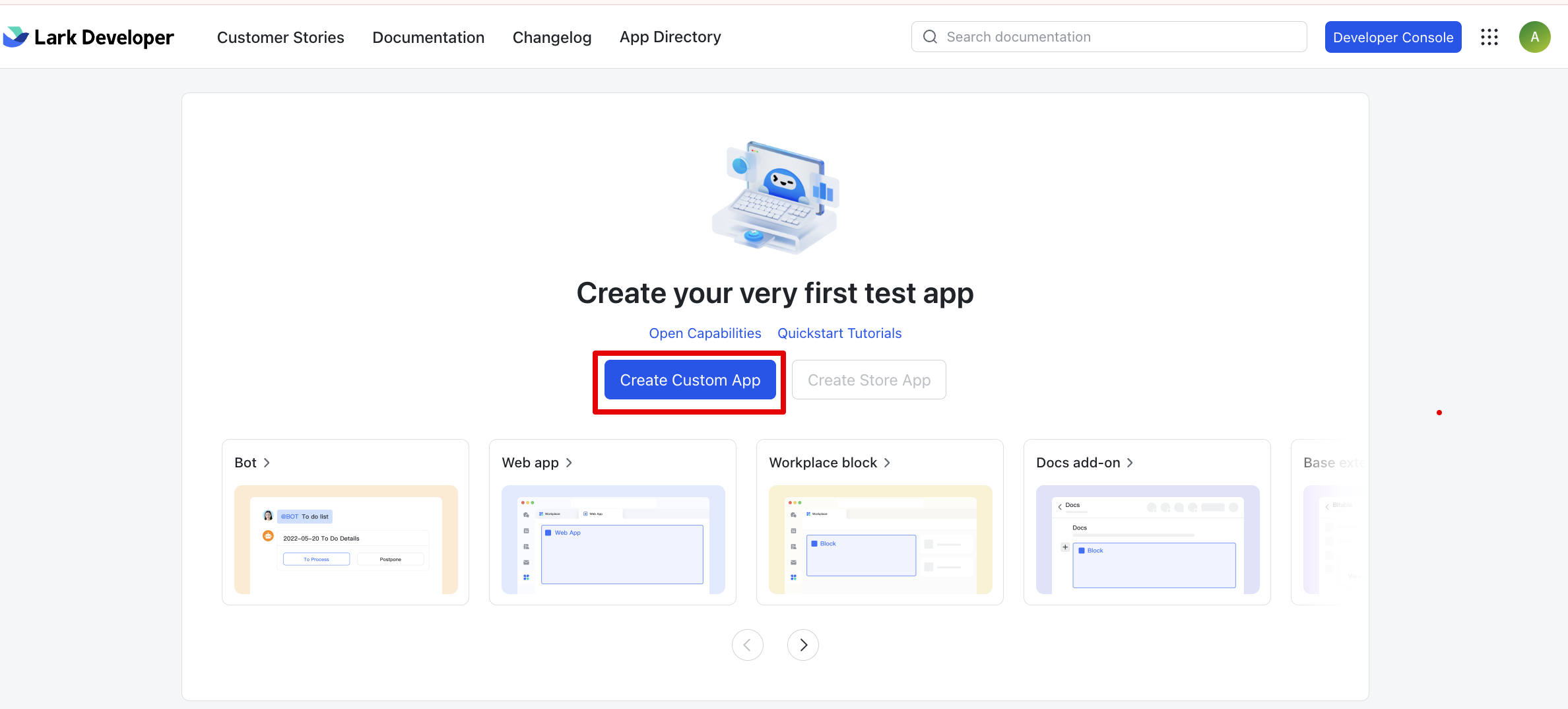

Step 2: Click Create Custom App.

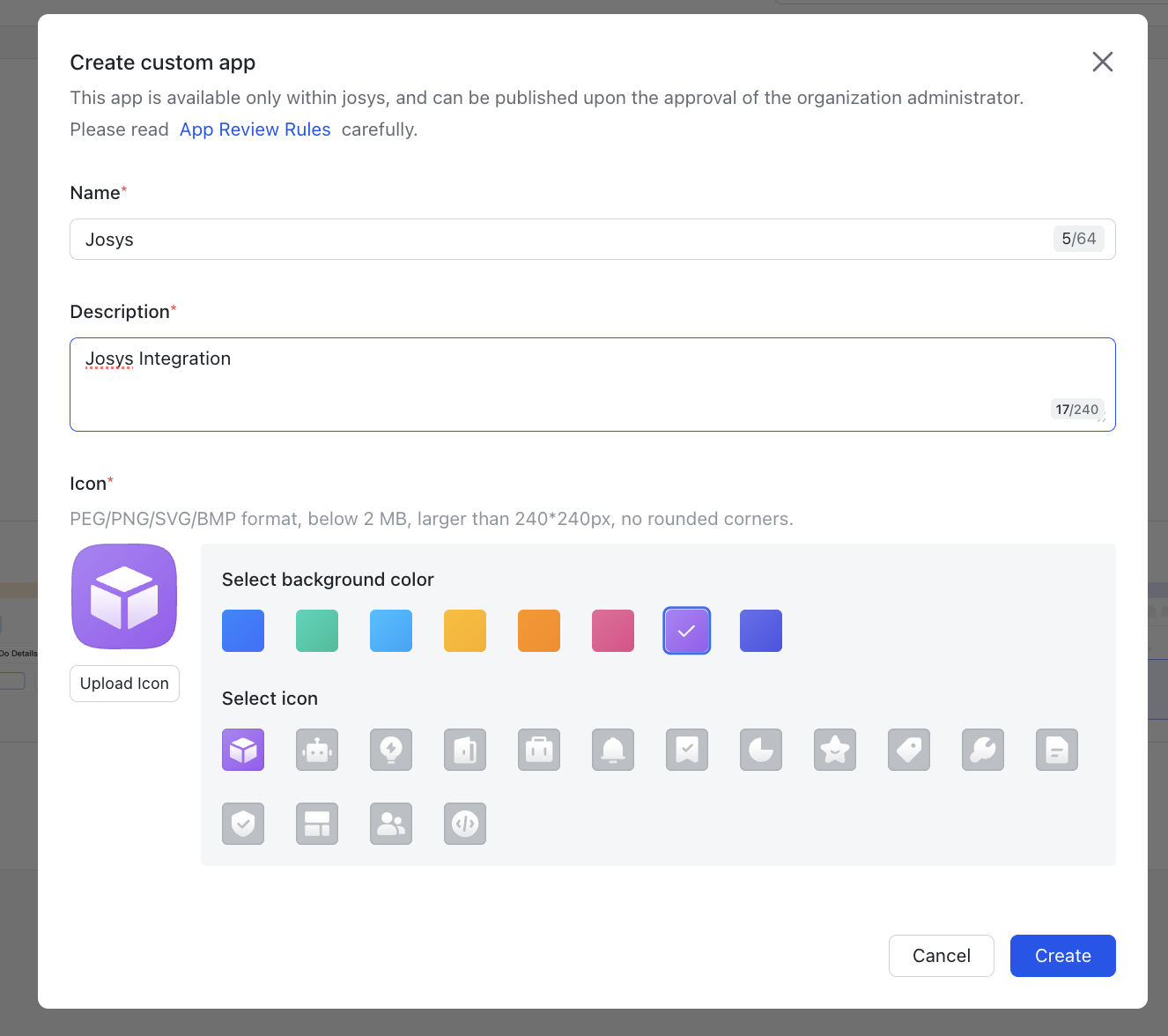

Step 3: Enter a Name and Description for the app, and select or upload a desired Icon. Click Create.

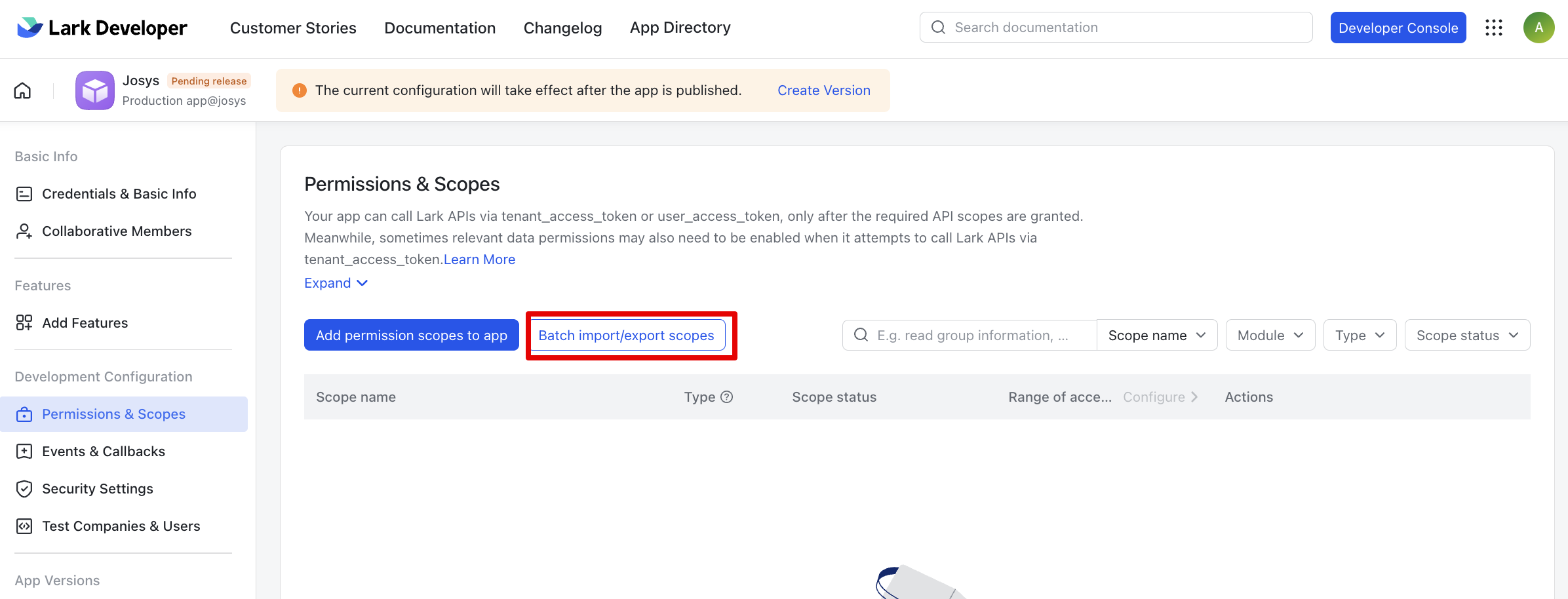

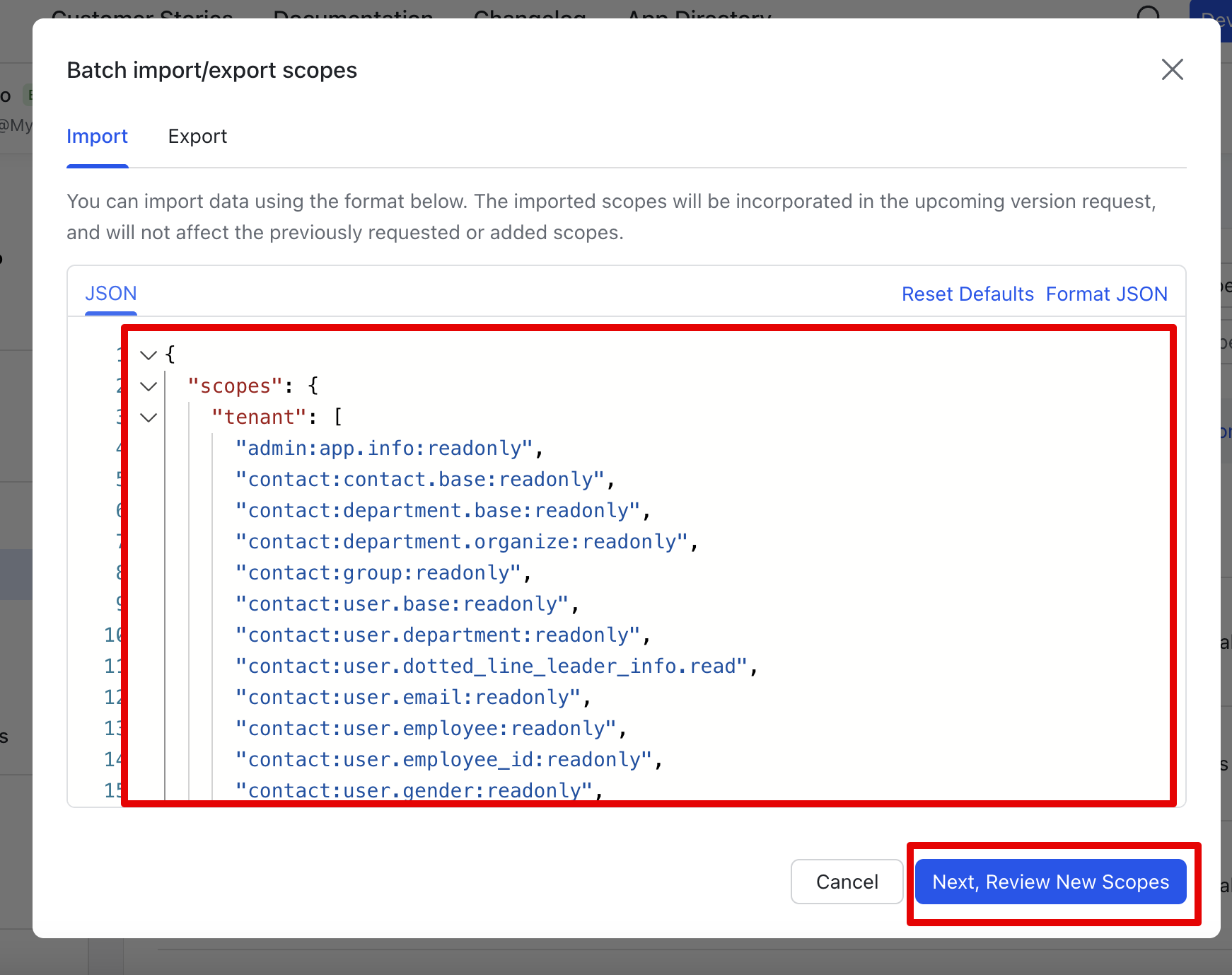

Step 4: Select the Permissions & Scopes option from Development Configuration. Click on Batch import/export scopes and copy and paste the following scopes in import tab. Click on Next, Review New Scopes and Click on Add.

{
  "scopes": {
    "tenant": [
      "contact:contact",
      "admin:app.info:readonly",
      "contact:contact.base:readonly",
      "contact:department.base:readonly",
      "contact:department.organize:readonly",
      "contact:group:readonly",
      "contact:user.base:readonly",
      "contact:user.department:readonly",
      "contact:user.dotted_line_leader_info.read",
      "contact:user.email:readonly",
      "contact:user.employee:readonly",
      "contact:user.employee_id:readonly",
      "contact:user.gender:readonly",
      "contact:user.phone:readonly",
      "contact:user.user_geo",
      "tenant:tenant:readonly"
    ],
    "user": [
      "contact:contact",
      "contact:contact.base:readonly",
      "contact:department.base:readonly",
      "contact:department.organize:readonly",
      "contact:user.base:readonly",
      "contact:user.department:readonly",
      "contact:user.department_path:readonly",
      "contact:user.dotted_line_leader_info.read",
      "contact:user.email:readonly",
      "contact:user.employee:readonly",
      "contact:user.employee_id:readonly",
      "contact:user.gender:readonly",
      "contact:user.phone:readonly",
      "contact:user.user_geo"
    ]
  }
}

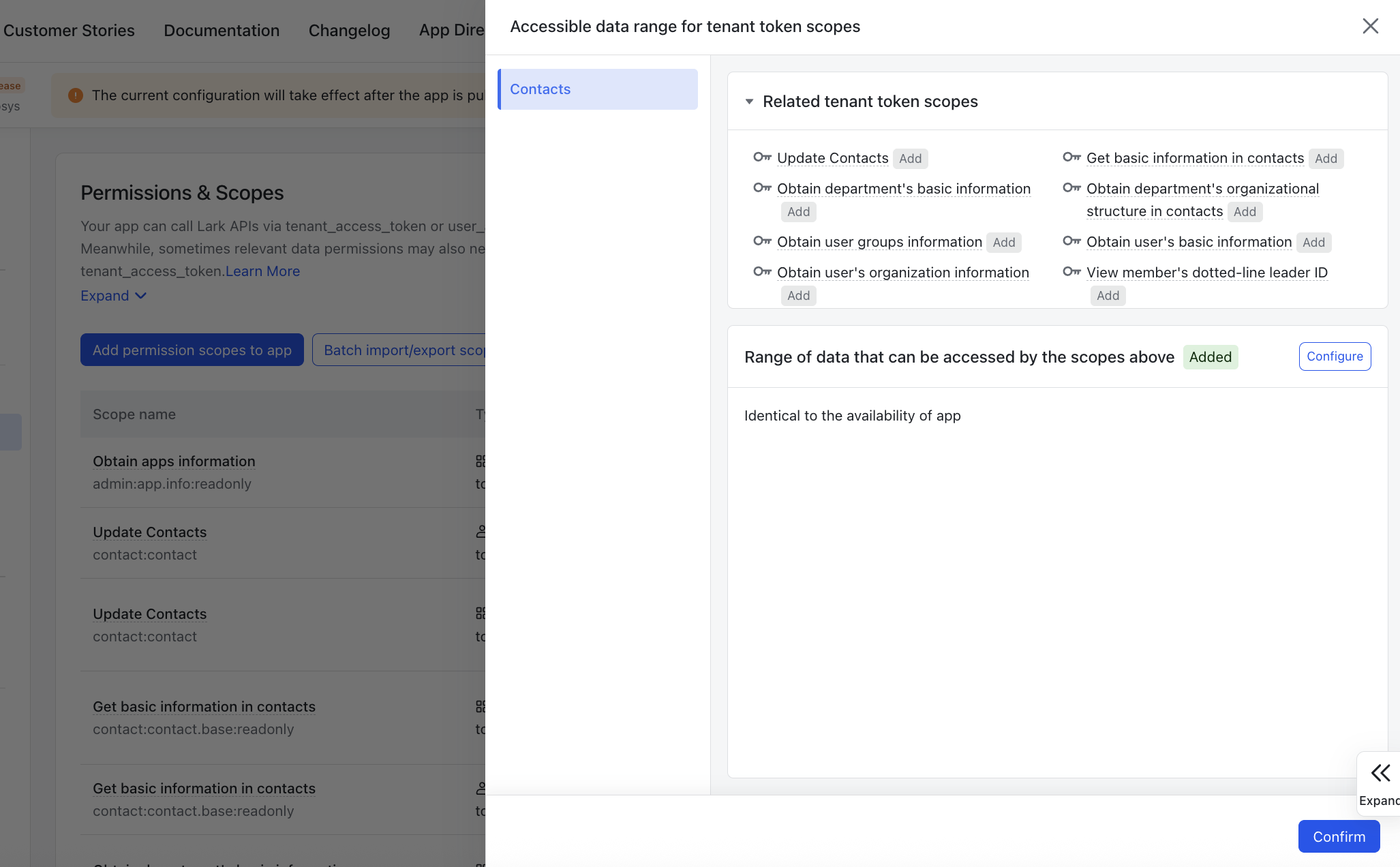

Step 5: Click Confirm.

Step 6: Select the Security Settings option from Development Configuration. Enter the following Redirect URL and click Add.

https://app.josys.it/admin/integrations/callback/lark

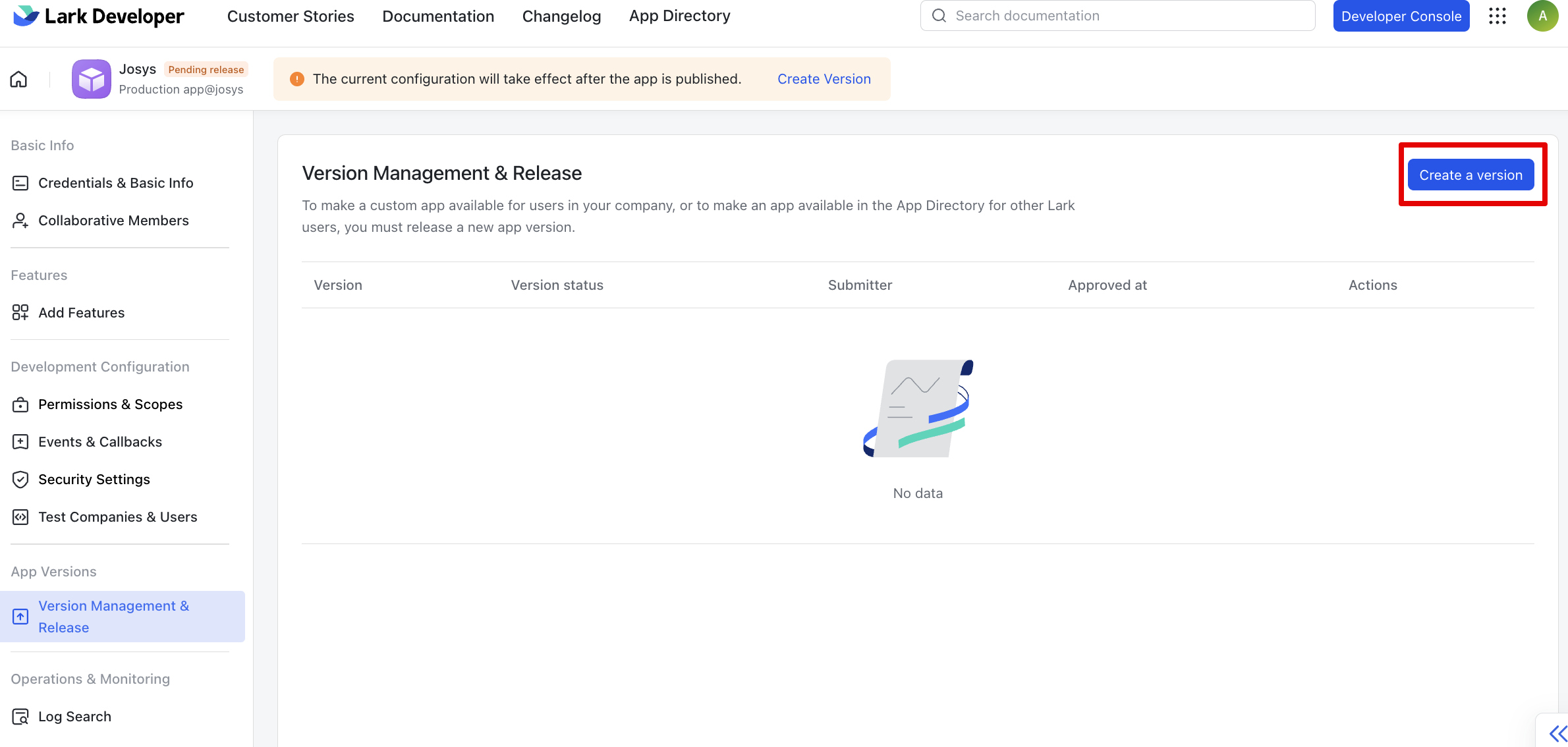

Step 7: Select the Version Management & Release option from App Versions and click Create a version.

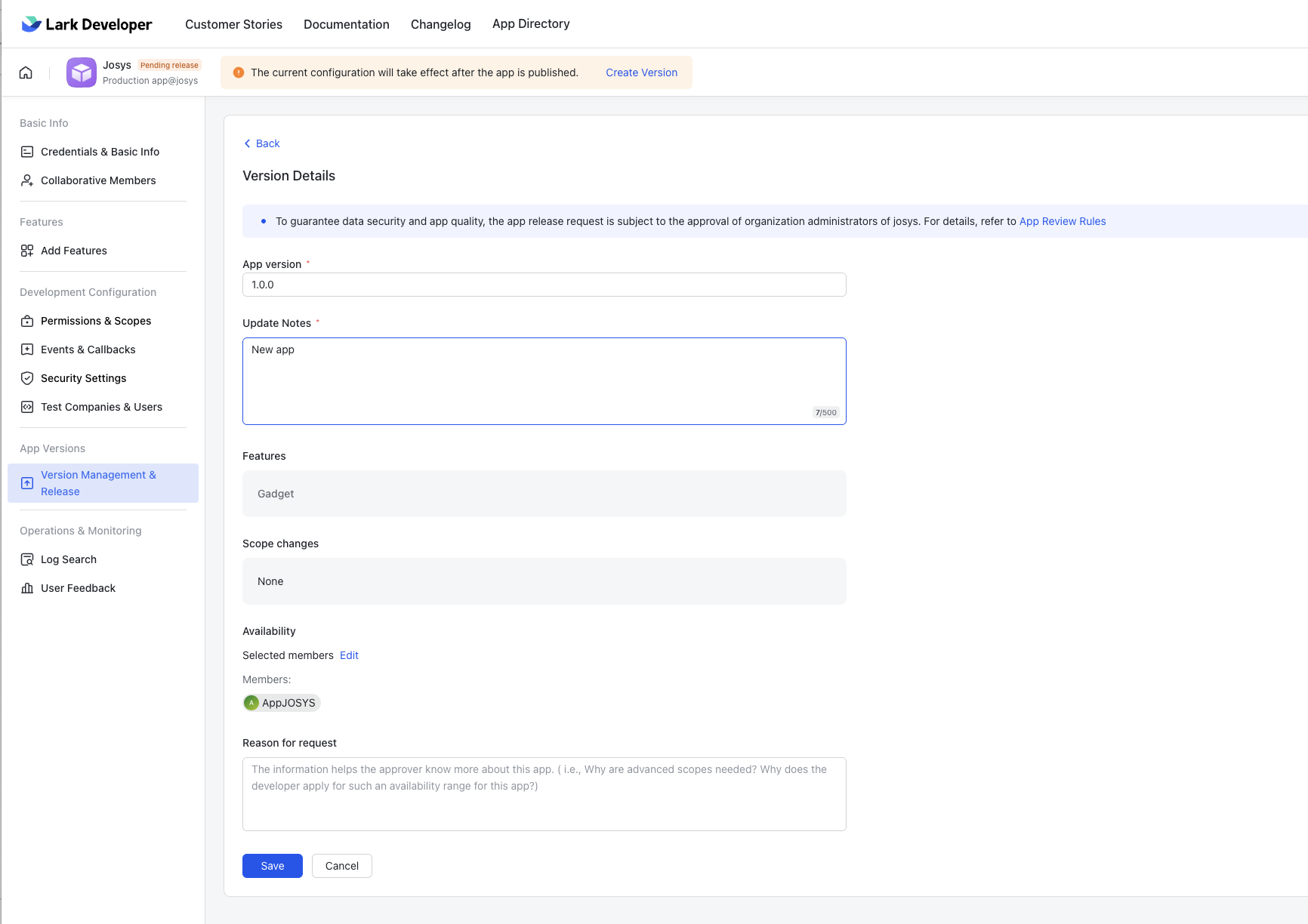

Step 8: Enter the App version, Update Notes, and click Save.

Step 9: Click Submit for release.

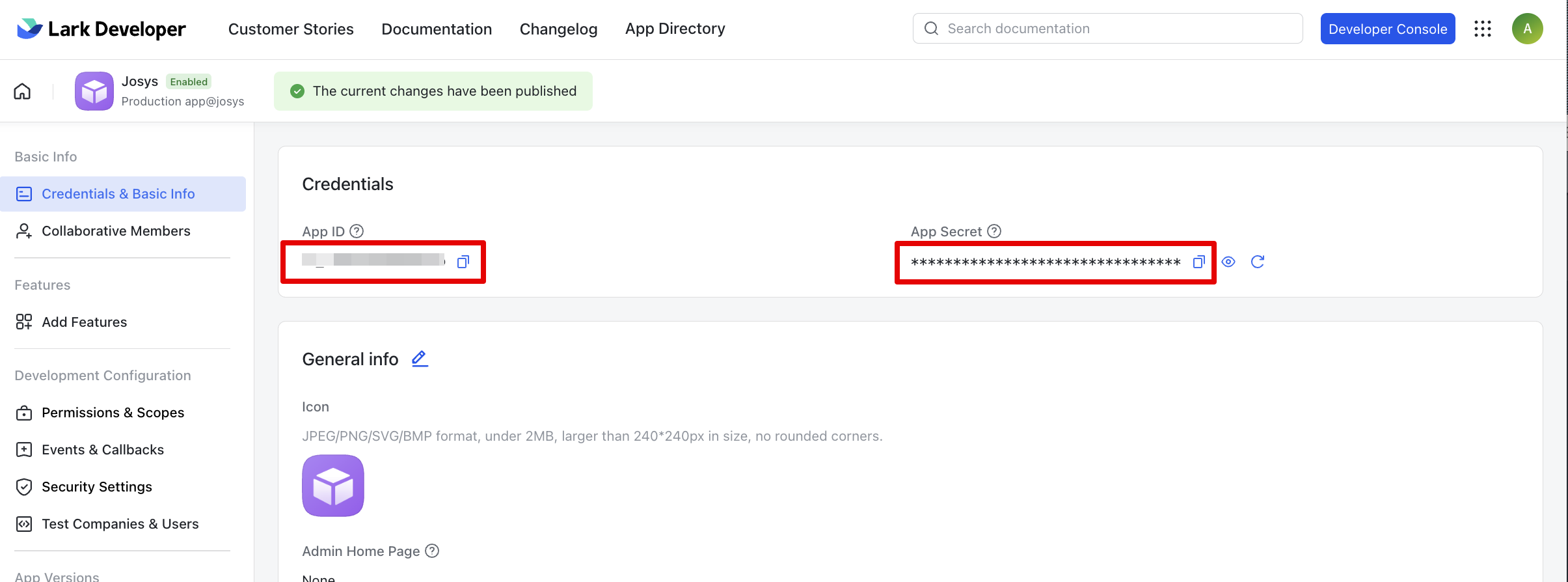

Step 10: Select the Credentials & Basic Info option from Basic Info. Copy the App Id and App Secret to use later in the integration steps.

Steps to Integrate

Step 1: Select Lark from the App Catalog in the Apps section.

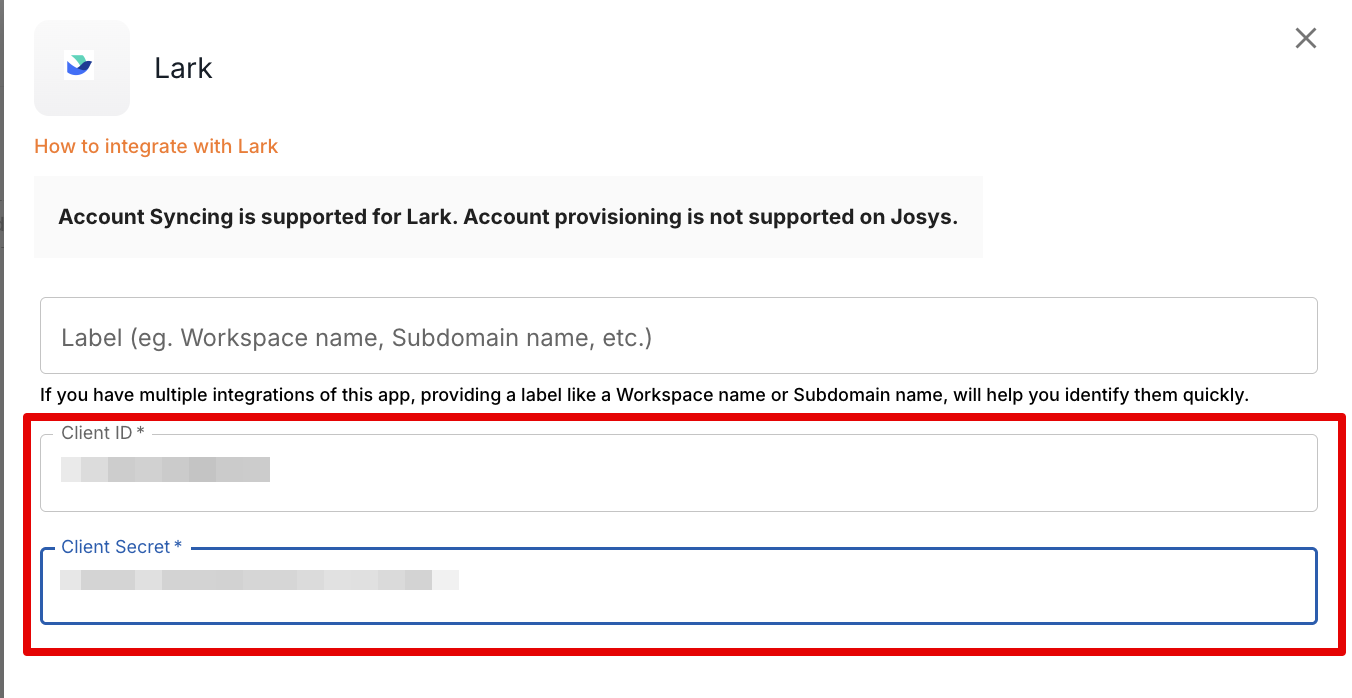

Step 2: Provide a suitable Label for identification. Enter the Client ID and Client Secret as copied in the previous section. Click Next to proceed.

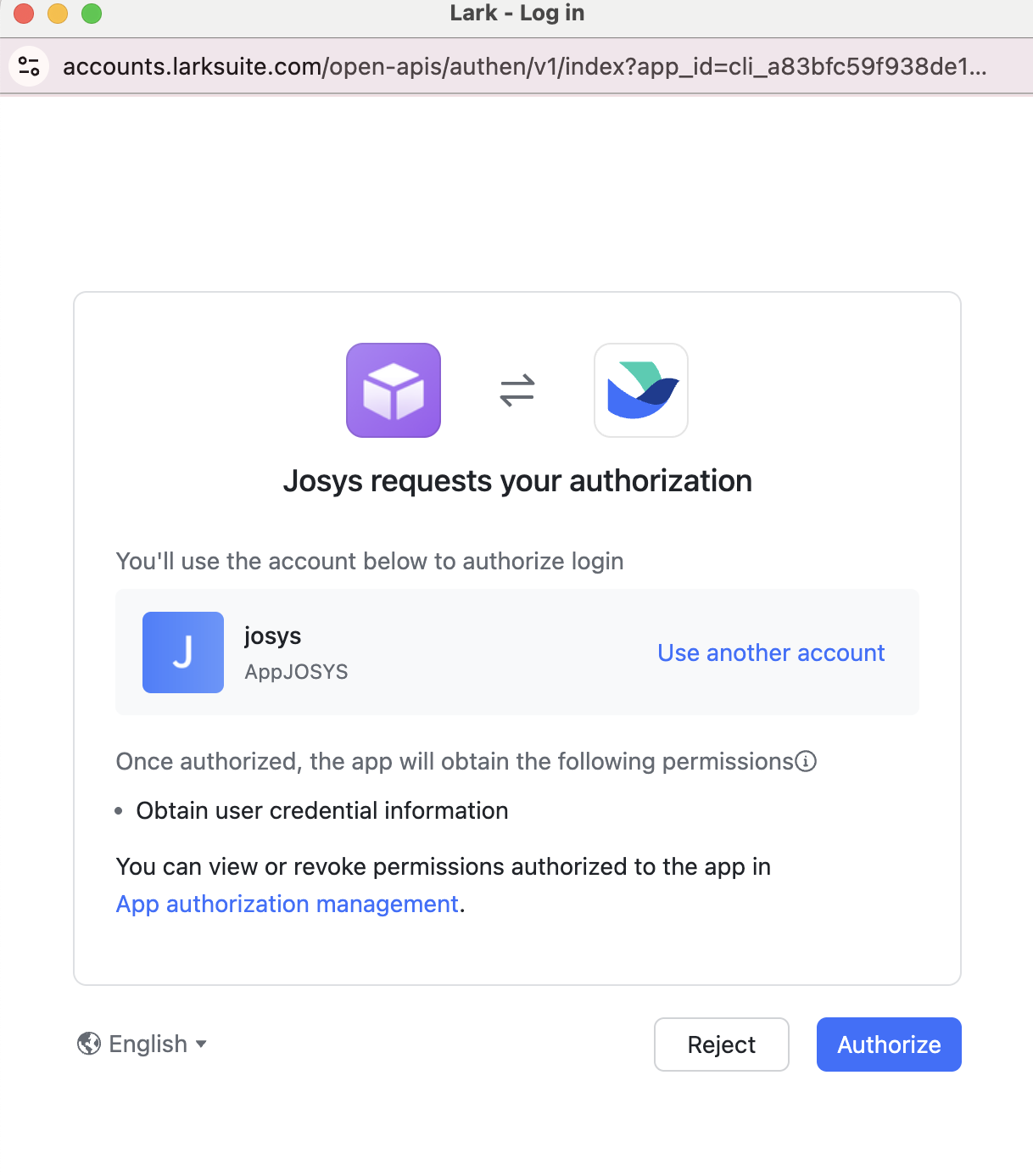

Step 3: Log in to Lark using an admin account. Follow the guided steps to authorize Josys and complete the integration.

Step 4: After the integration is complete, allow some time for data synchronization. You can now view and perform required actions from the Managed Apps in the Apps section.
